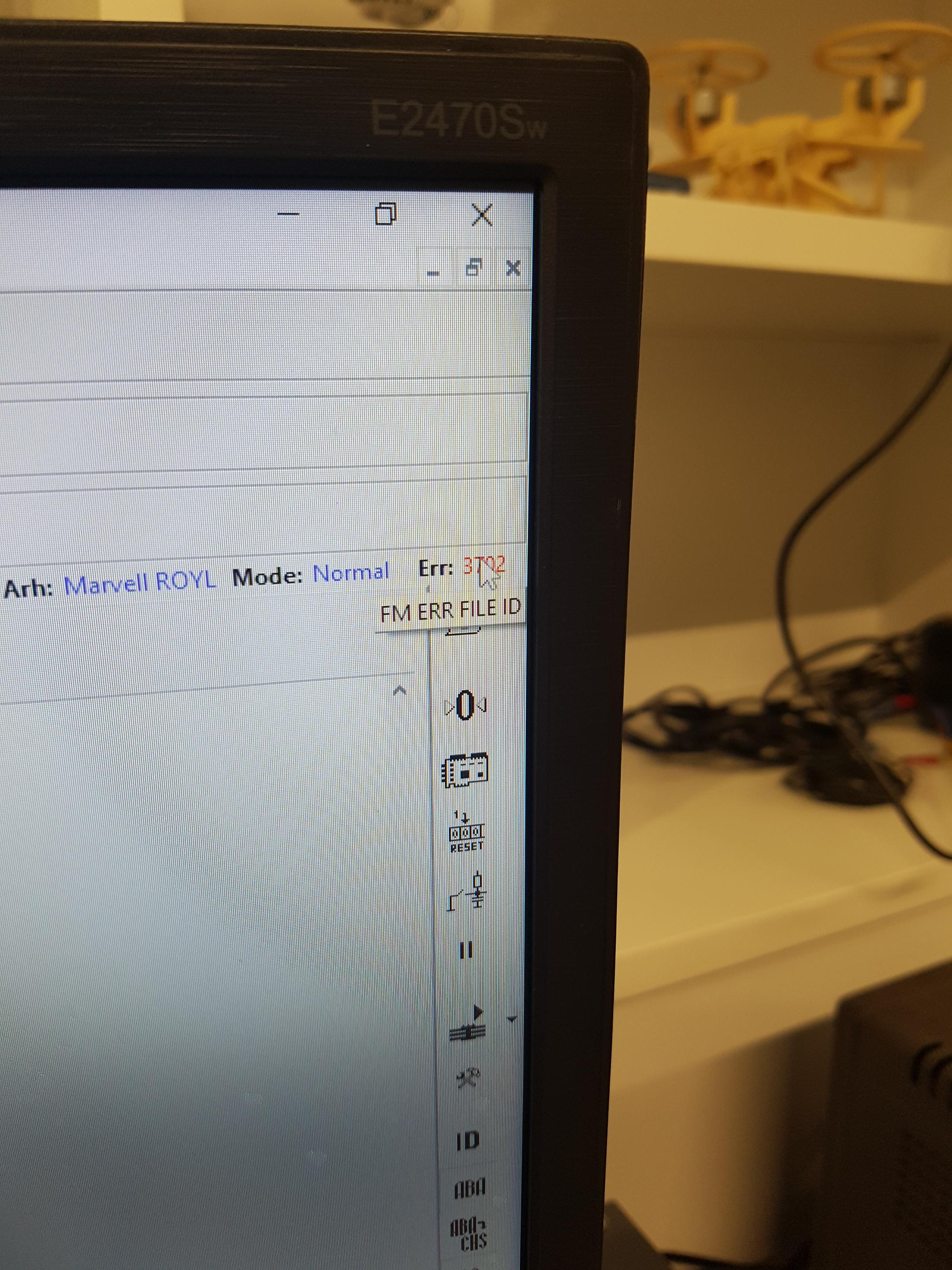

We have a drive that clicks alot and isn't detected by windows. It wasn't dropped so that's good.
Immediately PC3000 tells us we have a head issue
Tests says we have 4 heads dead out of 4, that's very rare for a drive that wasn't dropped.
The issue may be the main controller of the drive. Western Digishital decided it was a good idea to have the main controller, the firmware rom and the head actuator on a single chip.
Normally we would take a donor drive board, swap this little chip containing the firmware rom and be done.
Sadly WD are cucks, so we need to extract the rom from the dying MCU and program it on a donor board.
Luckily we can use the factory programming port to get the firmware
Extracting the original firmware
Time to swap out the boards with a donor. In this case we just need the board numbers to match, not the whole drive
Writing the rom
Good news. We can finally read the S.M.A.R.T. Status. Very good
Sadly the rom mismatches the internal SA area (disk area that contains the drive info necessary for it to operate)
And thus a 500gb drive is seen as just 24gb, aka the size of the partition containing the drive informations (head positions, headers, etc)
Luckily we can rebuild the SA using the info of the original ROM which is not damaged.
Bingo! We can now access the data and clone the drive.
Pictures saved, happy customer.
